Telescopic Boom Aerial Work Lift Platform

1、 14 meters of bending arm type high altitude working platform adopts a special steel structure boom, folding + telescopic design, large working radius;
2.、The turntable of the 14m curved arm high altitude working platform rotates 360° and has a large operation range.

  • Information

Telescopic Boom Aerial Work Lift Platform

Telescopic boom high altitude platform

The 14-meter curved arm high-altitude working platform can rotate 360° and easily cross obstacles to reach the working position. It is an ideal high-altitude working equipment.

The 14-meter high altitude operation platform with curved arm has two options of wireless remote control and controlled box, providing convenience for users and improving work efficiency.

The telescopic folding function of the 14m curved arm type aerial working platform makes it widely used in municipal, garden, airport, electric power, street lamp, advertising and other working scenes.

Maximum working height, m: 14

Maximum platform height, m: 12

Maximum operating radius, m: 5.7

Platform height at maximum platform amplitude, m: 6.84

Rated load, kg: 230

Number of people: 2

Platform size (length × width × height), mm: 1000*600*1100

Turntable rotation Angle: 360°

Platform rotation Angle: 360°

Rotation speed, rpm: 0.2 ~ 0.3

Total length (fully folded), mm: 4075

Total width, mm: 1000

Total height, mm: 2565

Wheelbase, mm: 1830

Minimum ground clearance, mm: 105

Weight of the whole machine, kg: 2500

Hydraulic system pressure (MPa) : 16

Power unit: 4.5Kw/4.5cc

Climbing ability: 25%

Tilt Angle: X-1.5, Y-3

Driving speed (gathering state) : 2-4Km/h

Battery: 6V226Ah*4

Walking mode: hydraulic motor wheel type

Boom row type: hybrid arm

Operating system: wireless remote control/controller control

Emergency device: hand pump

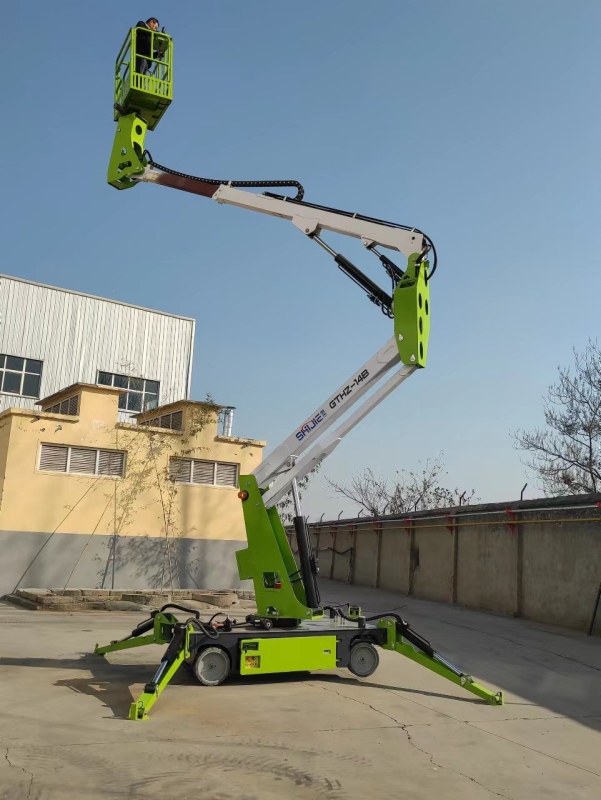

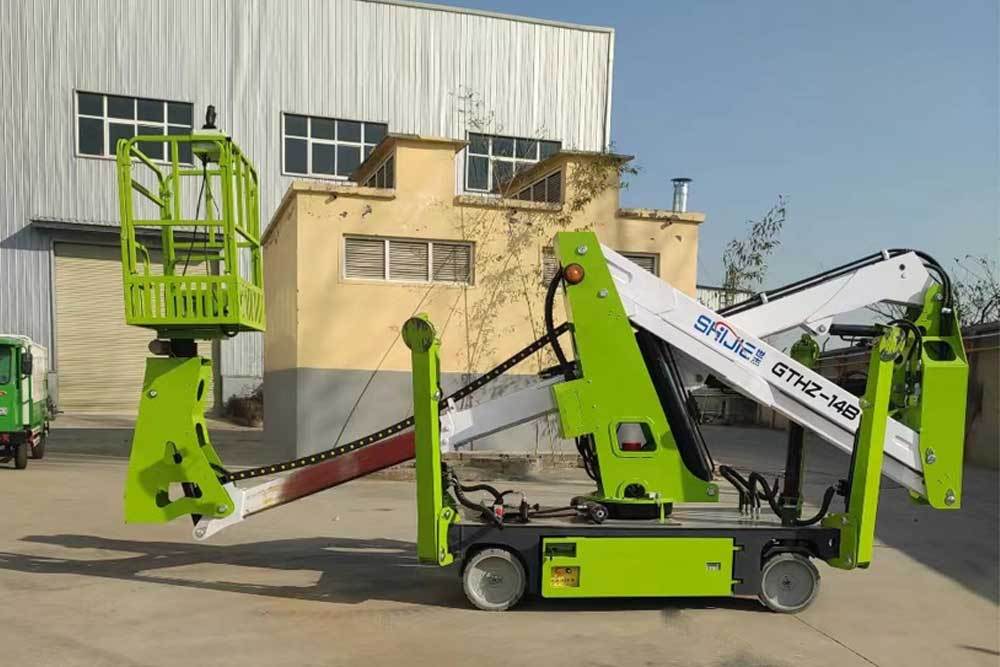

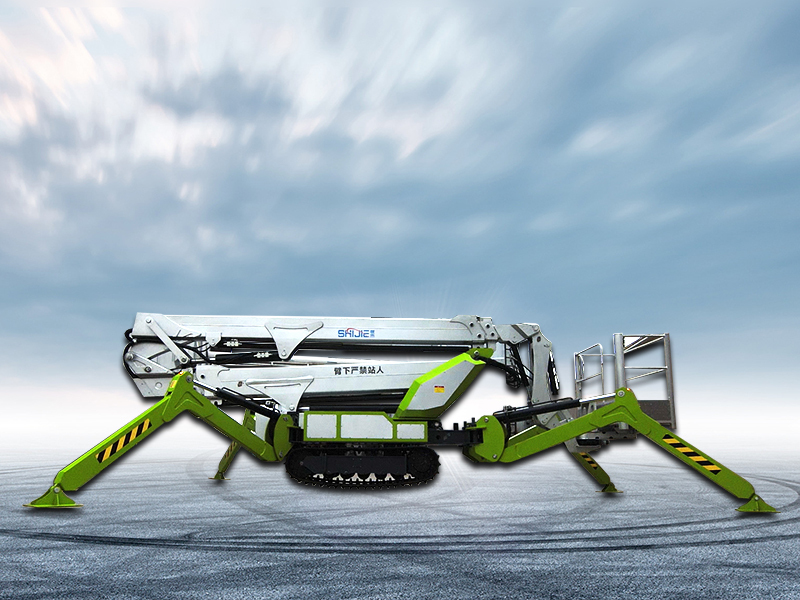

Detail presentation:

aerial lift
