Mini Scissor Lift

1. Enter the mini scissor manned elevator at will, specially designed for the climbing operation of building interlayer;
2. Mini scissors lifting platform to lift rubber track, 360° steering in place.

  • Information

Mini Scissor Lift

The 6-meter crawler high-altitude working platform has automatic walking function, which can walk at fast and slow speed in different working states. It is flexible in movement and simple in operation. Only one person can operate and continuously complete lifting, forward, backward, turning and other actions when working at high altitude.

The 6-meter track SJPT0607T has a maximum working height of 8 meters, covering the working needs below 8 meters. It only takes 28 seconds to reach the maximum working height, improving the working efficiency.

mini lift

Maximum working height: 8m

Maximum platform height: 6m

Minimum platform height: 1020mm

Working platform length: 1400mm

Working platform width: 700mm

Platform extension size: 600mm

Machine height (guardrail rising) : 2160mm

Machine height (guardrail folding) : 1780mm

Machine length: 1520mm

Machine width: 880mm

Rated load: 230kg

Safe working load of extension platform: 100kg

Maximum number of employees: 2

Driving speed (collection status) : 2.5Km/h

Driving speed (lifting state) : 0.45Km/h

Lifting motor: 24V/2.2KW2.6CC

Driving motor: 24V/2×0.6KW

Ascent/descent time: 28/35s

Maximum climbing capacity: 30%(17°)

Maximum operating Angle: 1.5°/3°

Drive/brake: Dual rear wheels

Walking mode: Rubber track

Wheel size: 160/72S/42

Battery: 2 x 12V120Ah

Charger: 24V20A

Machine weight: 980kg

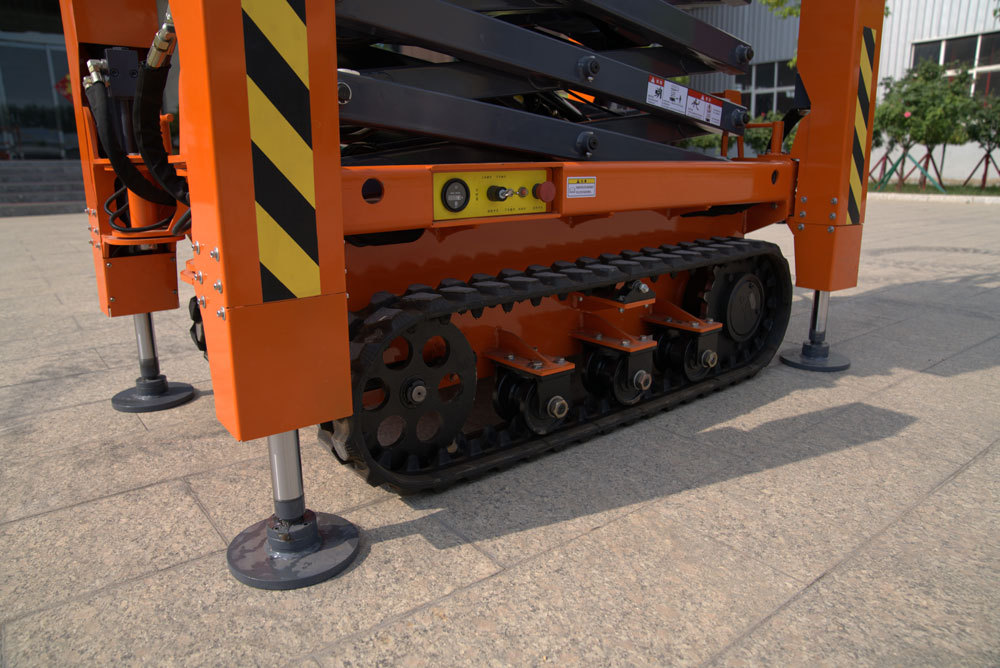

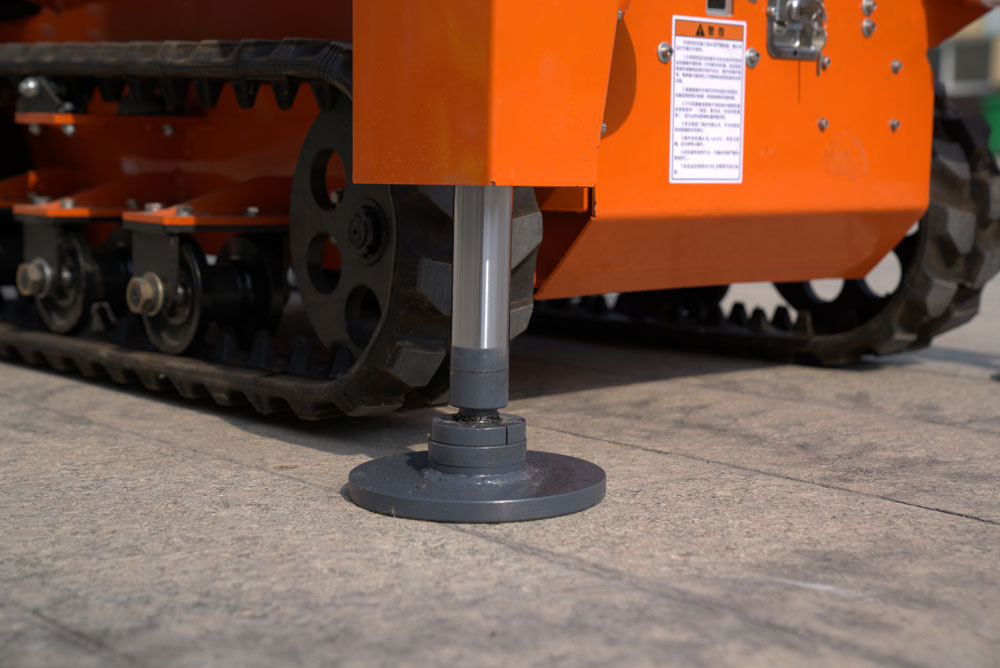

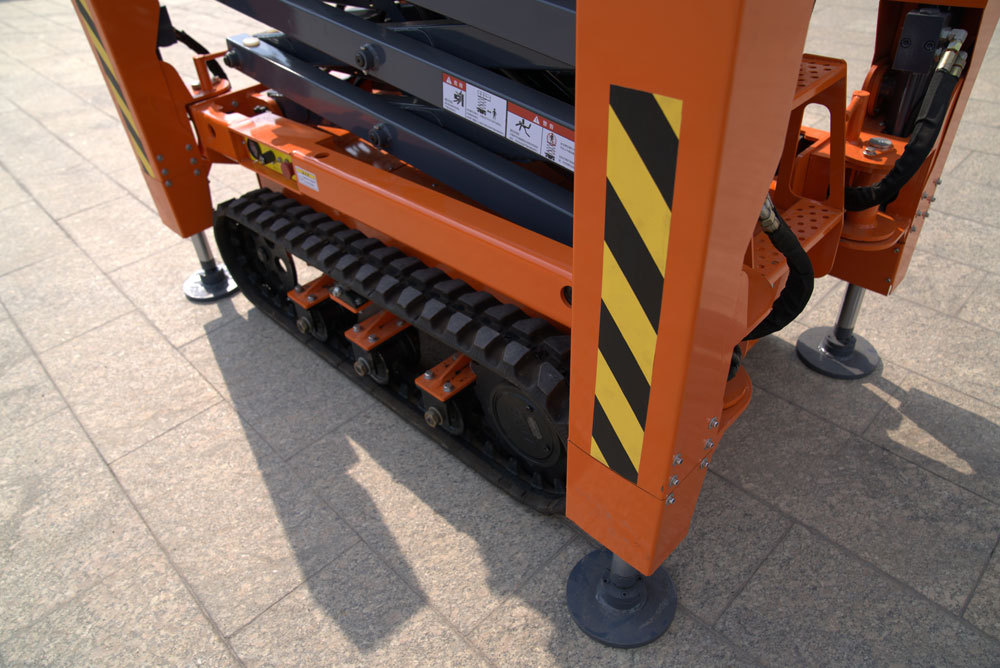

Partial detail display:
