Hydraulic Scissor Lift

1, Hydraulic Scissor Lift parts universal and modular design, durable and reliable;
2, scissor lift boom lift on both sides of the overall rotary tray, easy maintenance, easy daily inspection and maintenance.

  • Information

Hydraulic Scissor Lift

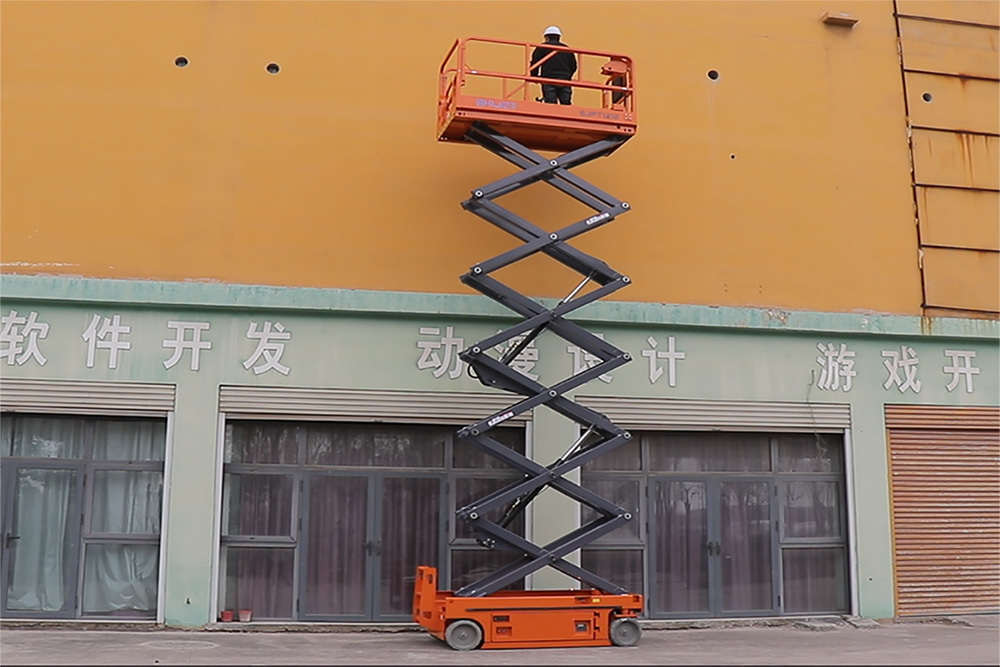

The 12-meter wheeled high-altitude working platform has a maximum working height of 14 meters, rated load of 350kg, working platform length of 2.25 meters, extension of 0.9 meters, and can accommodate 3 people at the same time. Walking can be high and low speed switch, easy to operate, lifting arm adopts high strength steel, high strength, strong structure. And the application of large tires on the walk is more safe and stable, in the workshop and other indoor high-altitude handling, maintenance of excellent play.

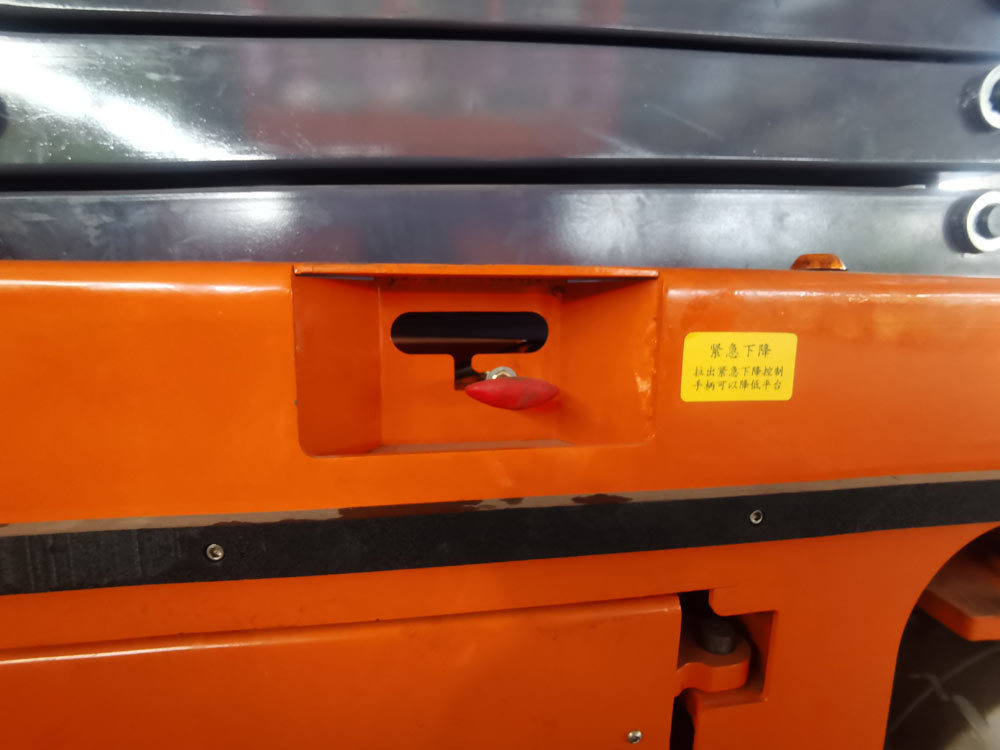

This 12-meter wheeled aerial working platform has multiple safety protection devices such as platform self-locking door (high safety factor during operation), automatic braking (braking effect to ensure slope operation), emergency descent (simple parking in emergencies), etc., with high safety factor, reliable and easy to walk at full height.

scissor lift boom lift

Maximum working height: 14m

Maximum platform height: 11.6m

Minimum platform height: 1450mm

Length of working platform: 2270mm

Width of working platform: 1120mm

Platform extension size: 1000mm

Machine height (guardrail rising) : 2600mm

Machine height (guardrail folding) : 1940mm

Machine length: 2470mm

Machine width: 1135mm

Rated load: 350kg

Safe working load of extension platform: 113kg

Maximum number of employees: 3

Driving speed (collection status) : 3.5Km/h

Driving speed (lifting state) : 0.45Km/h

Lifting motor: 24V/4.5KW/4.5CC

Driving motor: 24V/4.5KW

Rise/fall time: 62/42s

Maximum climbing capacity: 25%(14°)

Maximum operating Angle: 1.5°/3°

Drive/brake: Dual front wheels

How to walk: Trackless rubber tires

Wheel size: Φ381×127mm

Battery: 4 x 12V/240Ah

Charger: 24V/30A

Machine weight: 2900kg

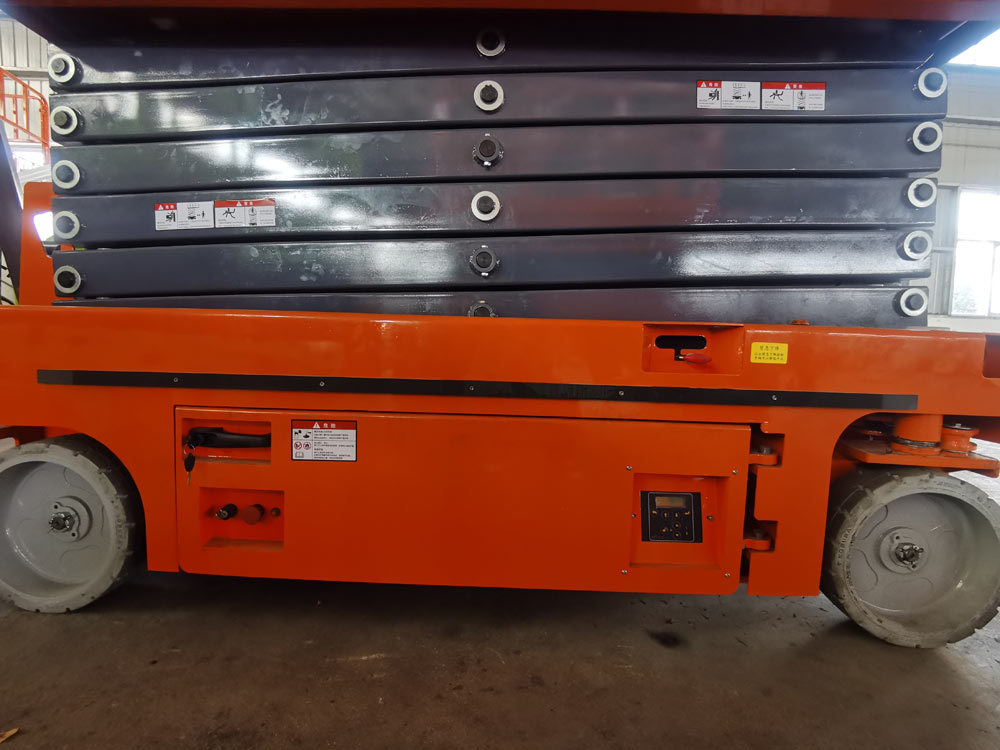

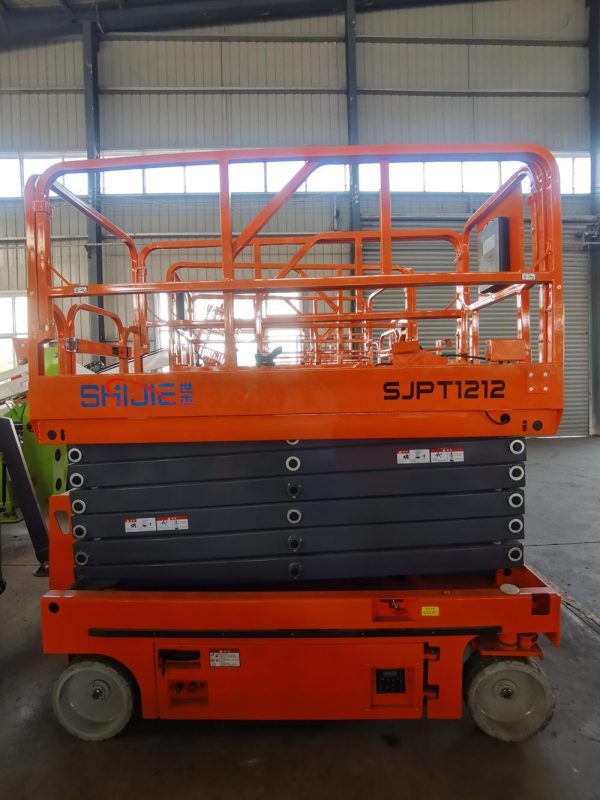

Presentation of details:

scissor lift boom

mec lifts
