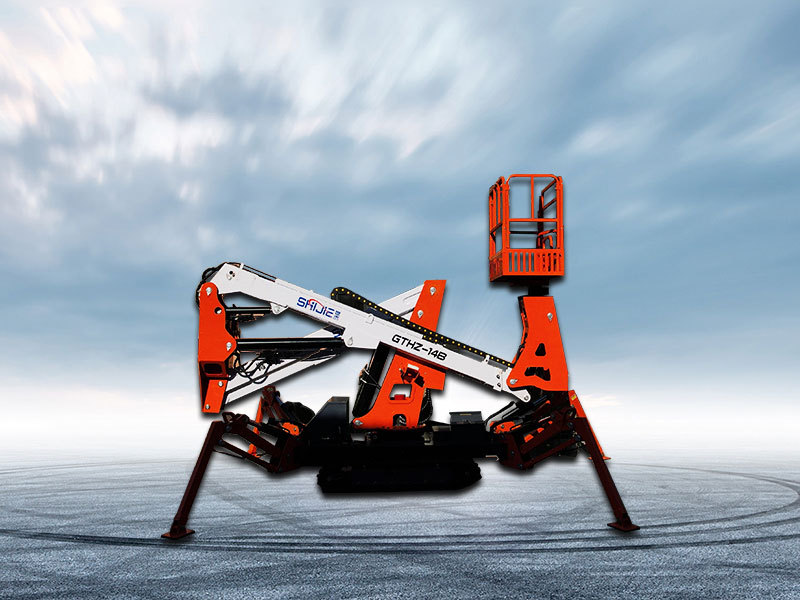

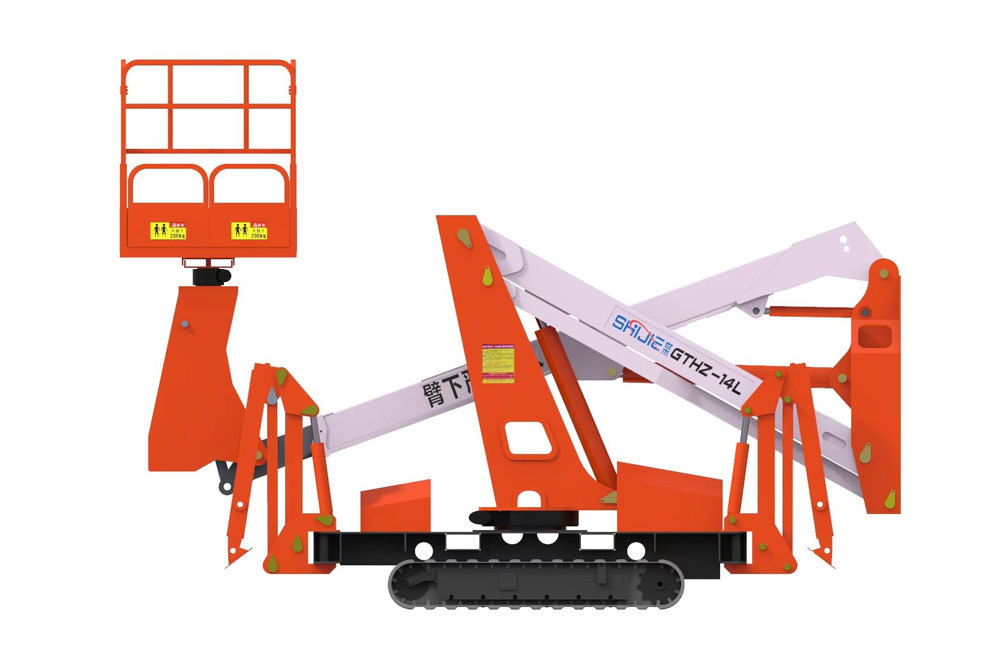

14 Meters Crawler Arm Aerial Work Lift

The 14-meter high altitude working platform with curved arm adopts a special steel structure of the boom. The curved arm has a compact structure, high strength, light weight, folding + telescopic design, large working radius, and better height and abduction performance.

  • Information

14 Meters Crawler Arm Aerial Work Lift

wheel type lift

The 14-meter curved arm high-altitude working platform has two options: wireless remote control and controlled box. It can also rotate 360° and easily cross obstacles to reach the working position. It is an ideal high-altitude working equipment, which provides convenience for users and improves working efficiency.

The telescopic folding function of the 14m curved arm type aerial working platform makes it widely used in municipal, garden, airport, electric power, street lamp, advertising and other working scenes.

Maximum working height, m: 14

Maximum platform height, m: 12

Maximum operating radius, m: 5.7

Platform height m at maximum platform amplitude: 6.84

Rated load, kg: 230

Number of people: 2

Platform size (length × width × height), mm: 1000*600*1100

Turntable rotation Angle: 360°

Platform rotation Angle: 360°

Rotation speed, rpm: 0.2 ~ 0.3

Total length (fully folded), mm: 4075

Total width, mm: 1000

Total height, mm: 2465

Wheelbase, mm: 1830

Minimum ground clearance, mm: 105

The weight of the whole machine is kg: 2700

Hydraulic system pressure (MPa) : 16

Power unit: 4.5Kw/4.5cc

Climbing ability: 35%

Tilt Angle: X-1.5, Y-3

Driving speed (gathering state) : 2-3.5Km/h

Battery: 6V226Ah*4

Walking mode: hydraulic motor track

Boom row type: hybrid arm

Operating system: wireless remote control/controller control

Emergency device: hand pump

Detail presentation:

65 foot boom lift

aerial work vehicle
